12v Contactor for Winches 8000 to 25000lbs

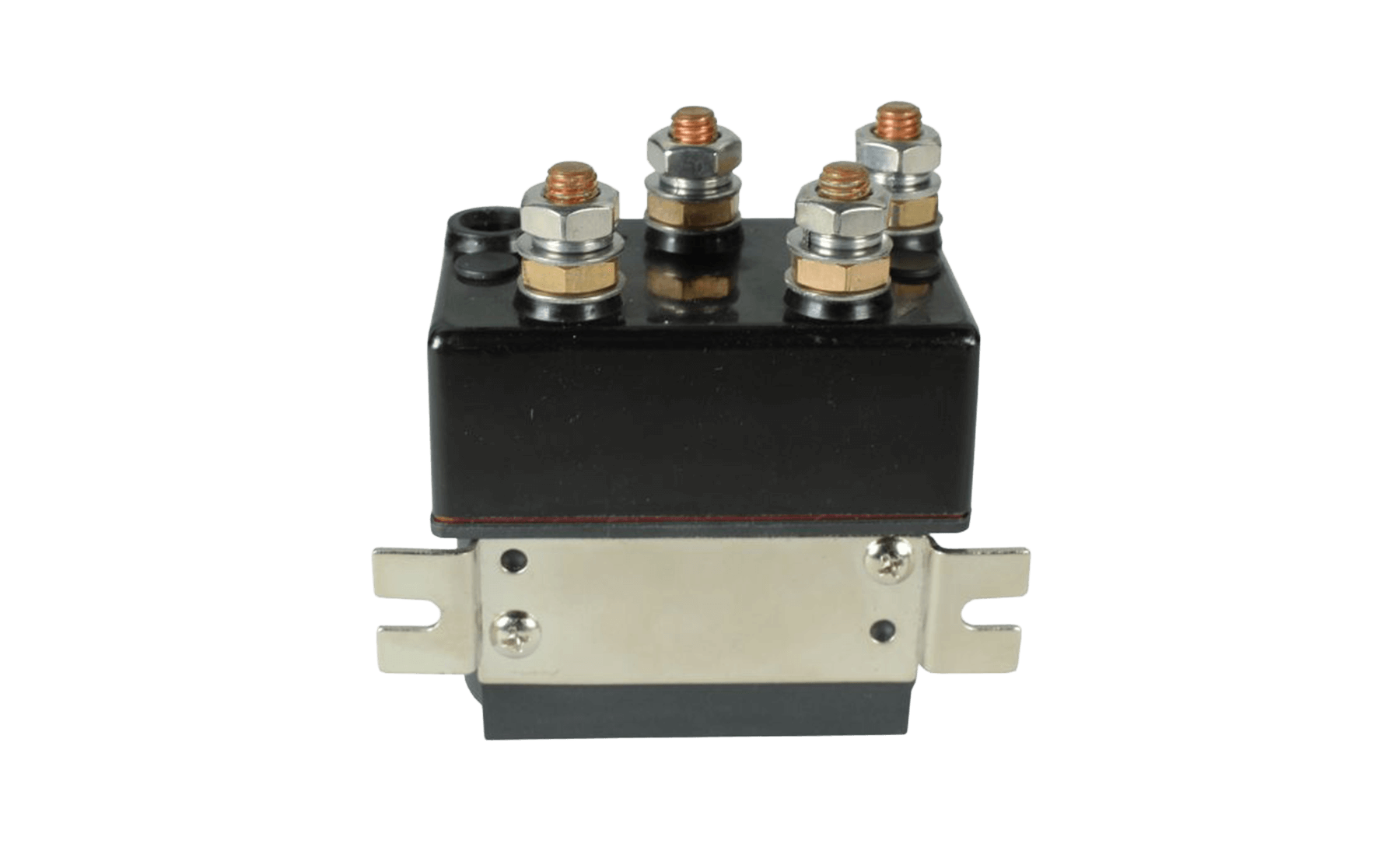

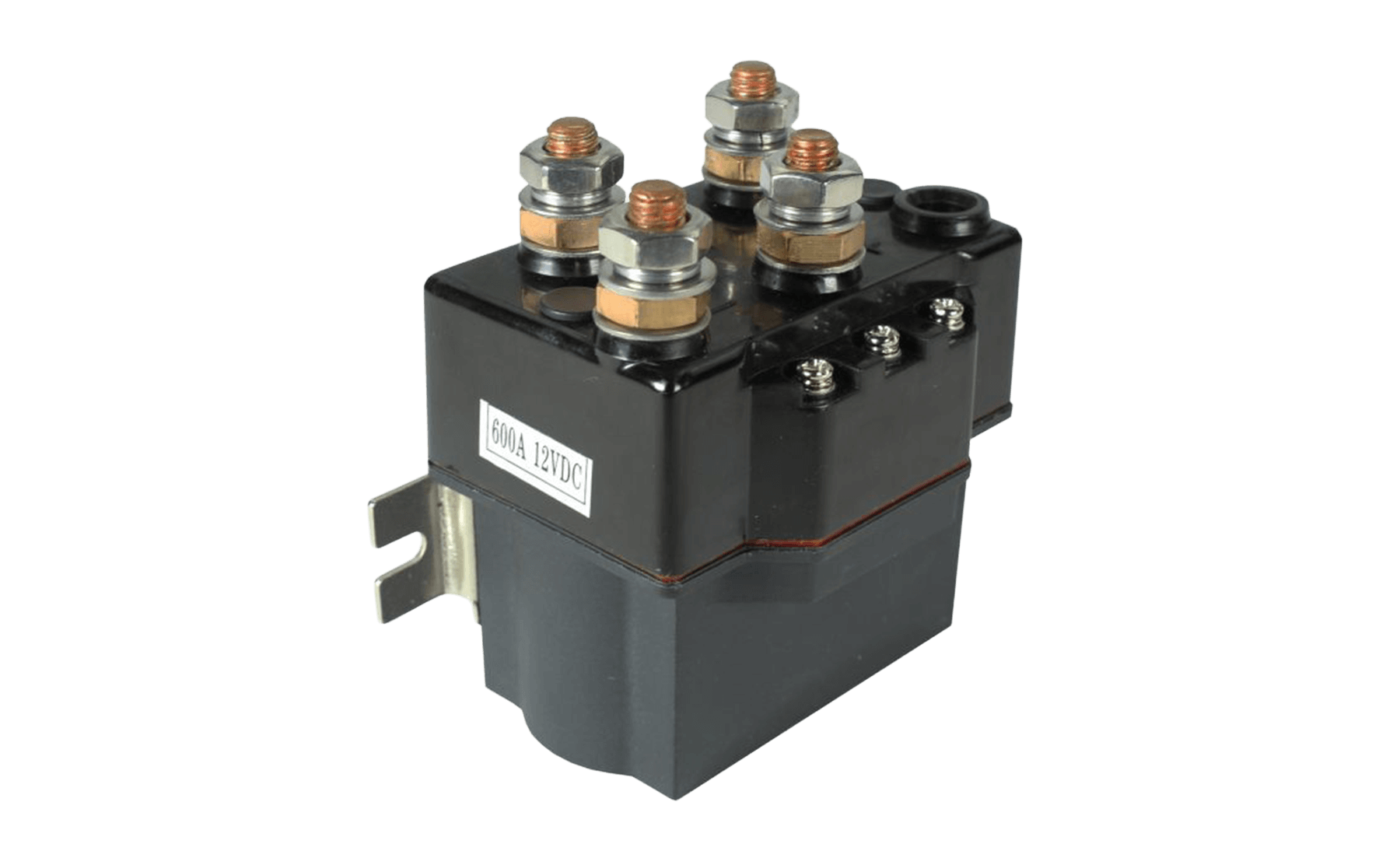

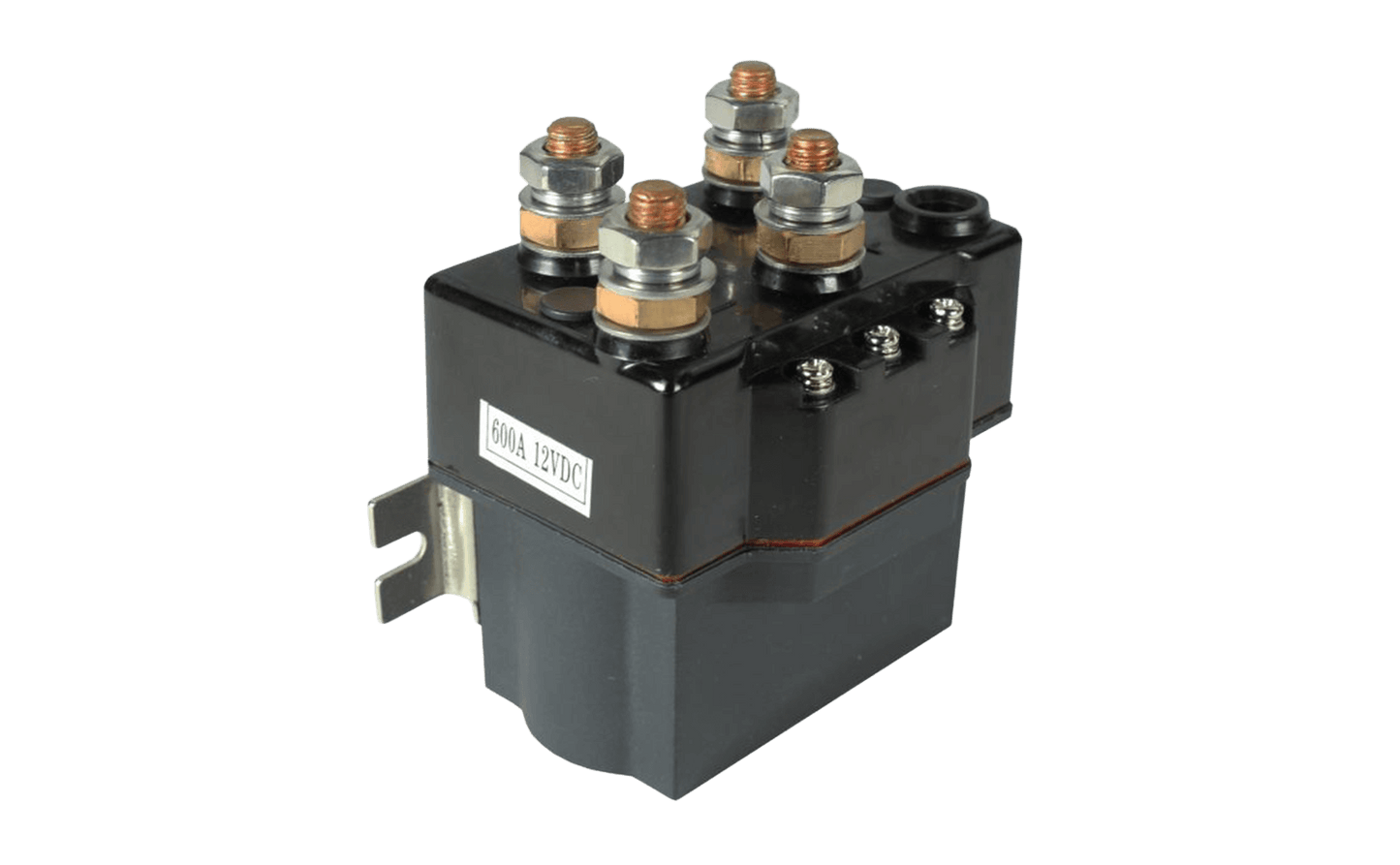

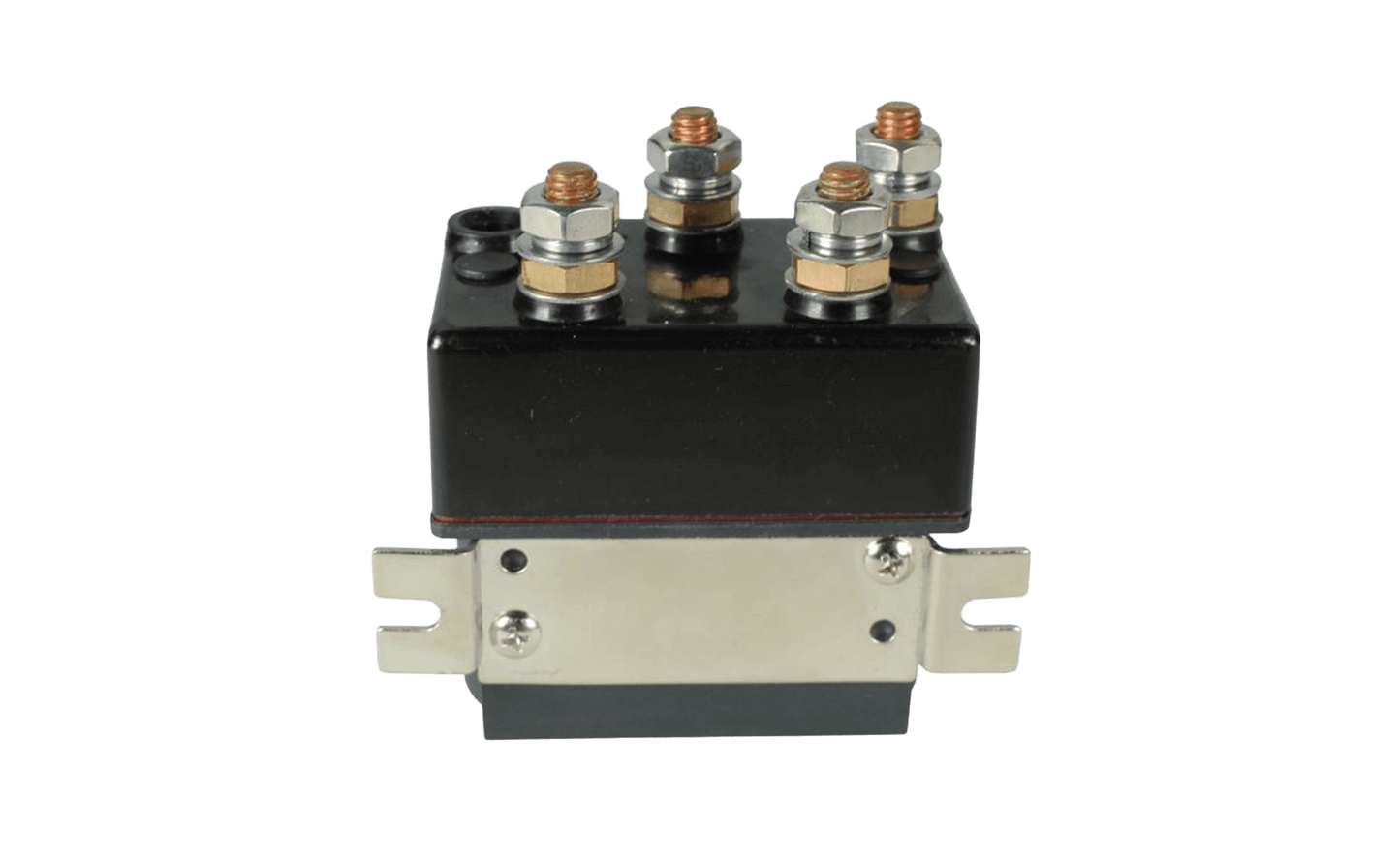

Premium 600 Amp Heavy Duty 12v Contactor Block

These solenoids can be fitted to most solenoid operated winches that are on the market and can also be used as a direct replacement for Albright solenoids. These are wireless remote compatible and works with both series wound and permanent magnet motors.

Applications:

• Max Amps = 600 A
• Voltage = 12v
• Winches From 8000lb to 25,000lb
• Wireless Remote Compatible
• Series Wound and Permanent Magnet Motors

Dimensions:

• Overall Height = 3.74"
• Main Body Height = 2.95"
• Overall Width = 3.34"
• Overall Depth = 2.36"
• Terminal Height = 0.78"
