QJZ Bearings

UCTB209-26 - Tapped Based Pillow Block Mounted Bearing Unit, 1.625" Bore (ID), Insert Bearing: UC209-26, Housing: TB209

UCTB209-26 - Tapped Based Pillow Block Mounted Bearing Unit, 1.625" Bore (ID), Insert Bearing: UC209-26, Housing: TB209

$43.99 USD
$43.99 USD
Sale Ausverkauft

300 auf Lager

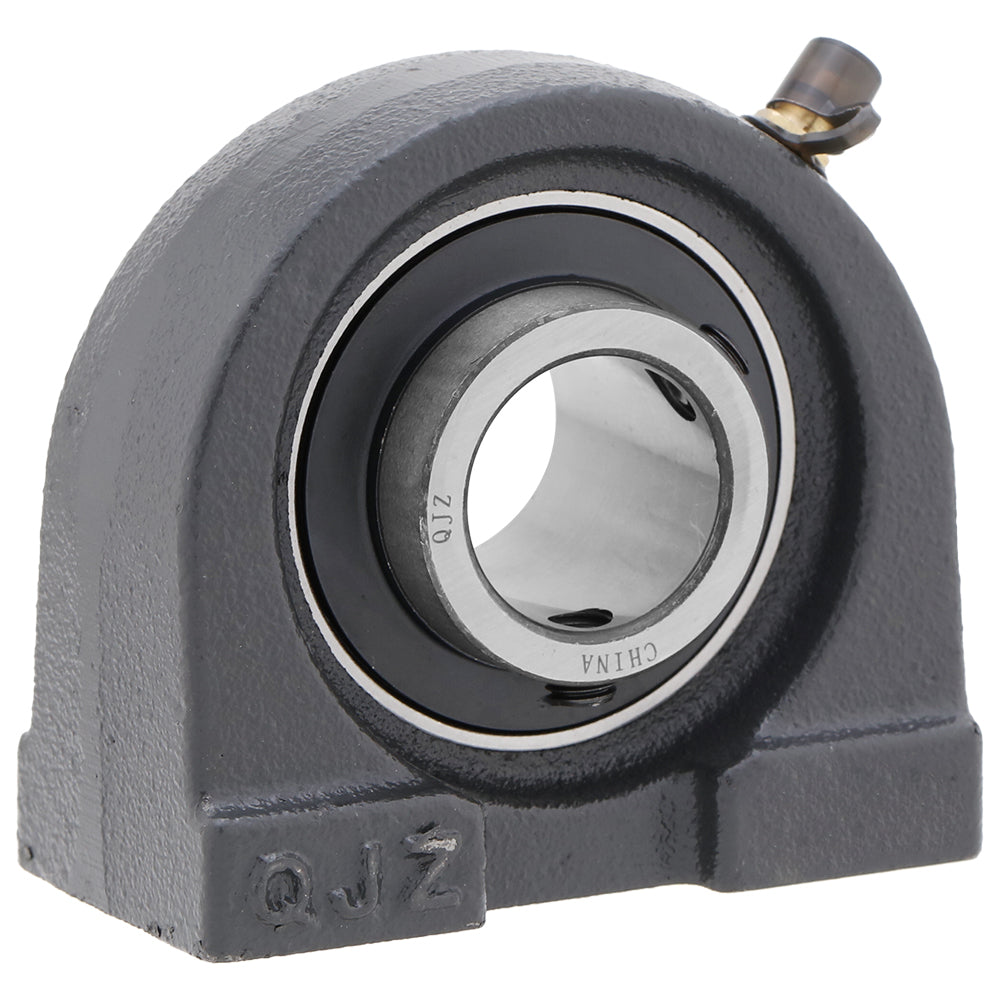

Tapped Base Pillow Block Mounted Unit Bearing

The UCTB series tapped base pillow block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit features a tapped base housing for secure mounting, an insert bearing with set-screw locking, and durable housing designed for easy installation and long service life.

Part Number UCTB209-26
Shaft Bore (ID) 1.625 in | 41.275 mm
Length 5 in | 127 mm
Height 4.248 in | 107.899 mm
Width 2 in | 50.8 mm
Bolt to Bolt Spacing 3.752 in | 95.3 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
